SKU 2320
Electrical Epoxy Coating
Electrical Protection — Structural & Rebuild
Solventless protective epoxy coating for electrical rooms, substations, and switchgear areas. Provides a durable, anti-static, chemical-resistant floor and wall coating that meets electrical safety requirements for areas housing critical electrical infrastructure.

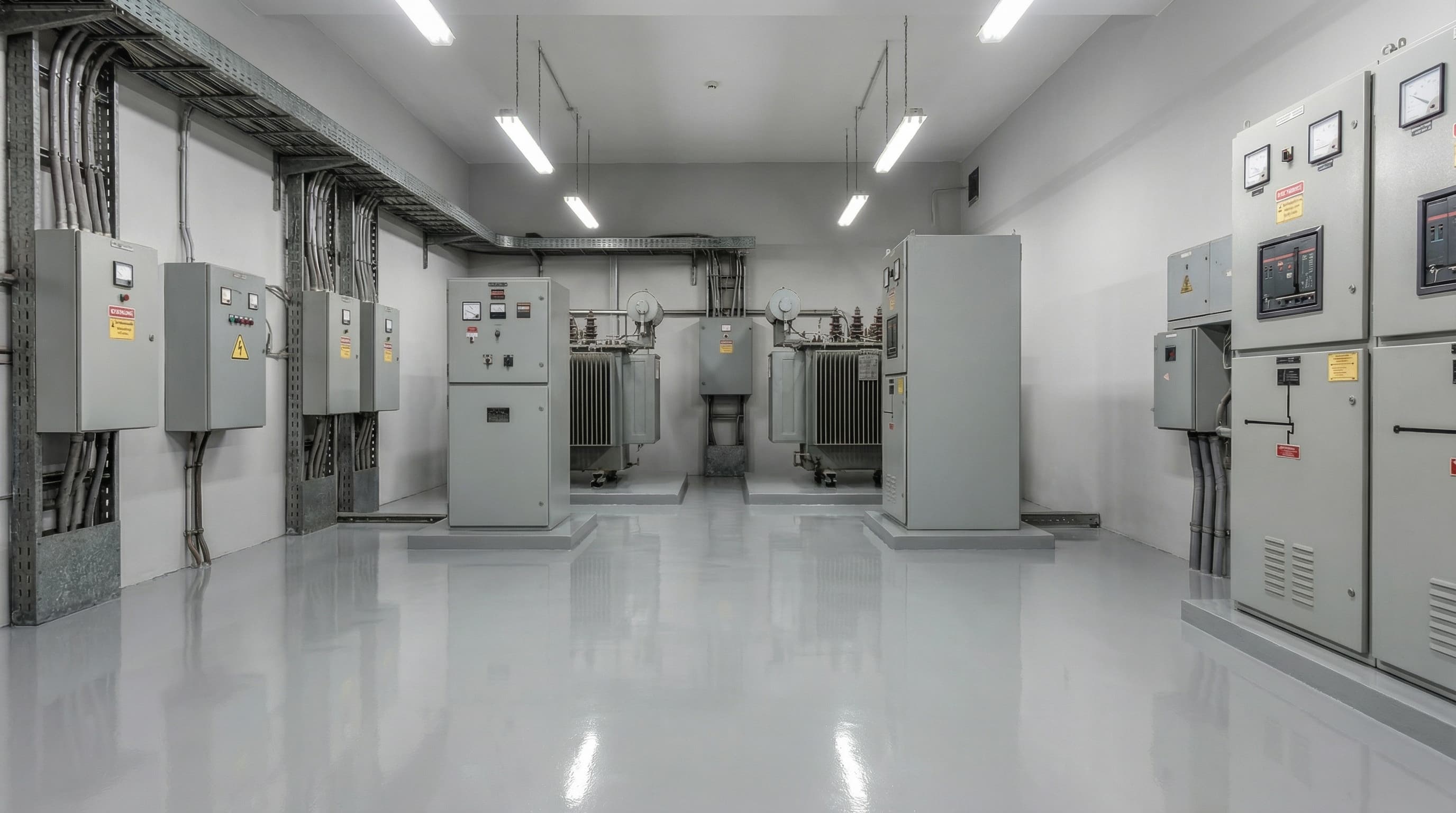

After
Key Features
- Anti-static properties for electrical areas
- Solventless — safe near electrical equipment
- Chemical and abrasion resistant
- Suitable for floors and walls
- Pre-tinted to AS 2700 colours
- High adhesion to concrete and steel
Technical Specifications
| Mix Ratio | 3A:1B by volume / 4A:1B by weight |
| Pot Life | 30 min at 25°C |
| Compressive Strength | >70 MPa |
| Hardness | Shore D >81 |
| Coverage | 1L per 3–5 m² |
| Full Cure | 7 days |
| VOC | Zero — solvent-free |
Applications
Electrical substation floorsSwitchgear room coatingCable tray areasBattery room floorsTransformer room protection
Industries Served
Power GenerationMining & ResourcesManufacturingCivil Infrastructure
Technical Documents
Need This Product?
Contact our team for pricing and availability of Electrical Epoxy Coating.
Quick Specs
- Mix Ratio
- 3A:1B by volume / 4A:1B by weight
- Pot Life
- 30 min at 25°C
- Compressive Strength
- >70 MPa
- Hardness
- Shore D >81
- Coverage
- 1L per 3–5 m²
